Dc standard magnetic motor 180v











Quick Details

  • Usage: Boat, Car, Electric Bicycle, Fan, Home Appliance, Boat,Car,Electric Bicycle,Fan,Home Appliance
  • Certification: CE
  • Type: magnetic motor
  • Torque: 1.03mN.m
  • Construction: Permanent Magnet
  • Commutation: Brush
  • Protect Feature: Totally Enclosed
  • Speed(RPM): 1930rpm
  • Continuous Current(A): 1.39A
  • Output Power: 1/4HP
  • Voltage(V): 180v
  • Efficiency: IE 2
  • product: magnetic motor
  • insulation grade: F
  • diameter: 113/123mm magnetic motor

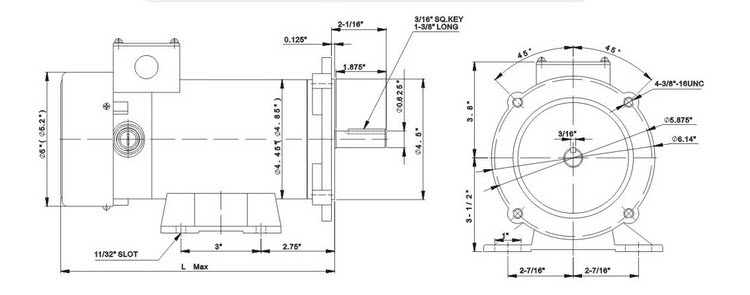

◊ Drawing

◊ Specification

◊ Model Description

113

ZYV

180

-

1/4

-

1750

1.

2.

3.



4.



5.


1.Body OD:113-fuselage outside diameter of 113mm

2.ZYV:ferrite permanent magnet DC motor

3.Voltage:180-180V.DC input

4.Power:1/4-rated output power of 1/4HP

5.Speed:1750-Rated speed 1750rpm
